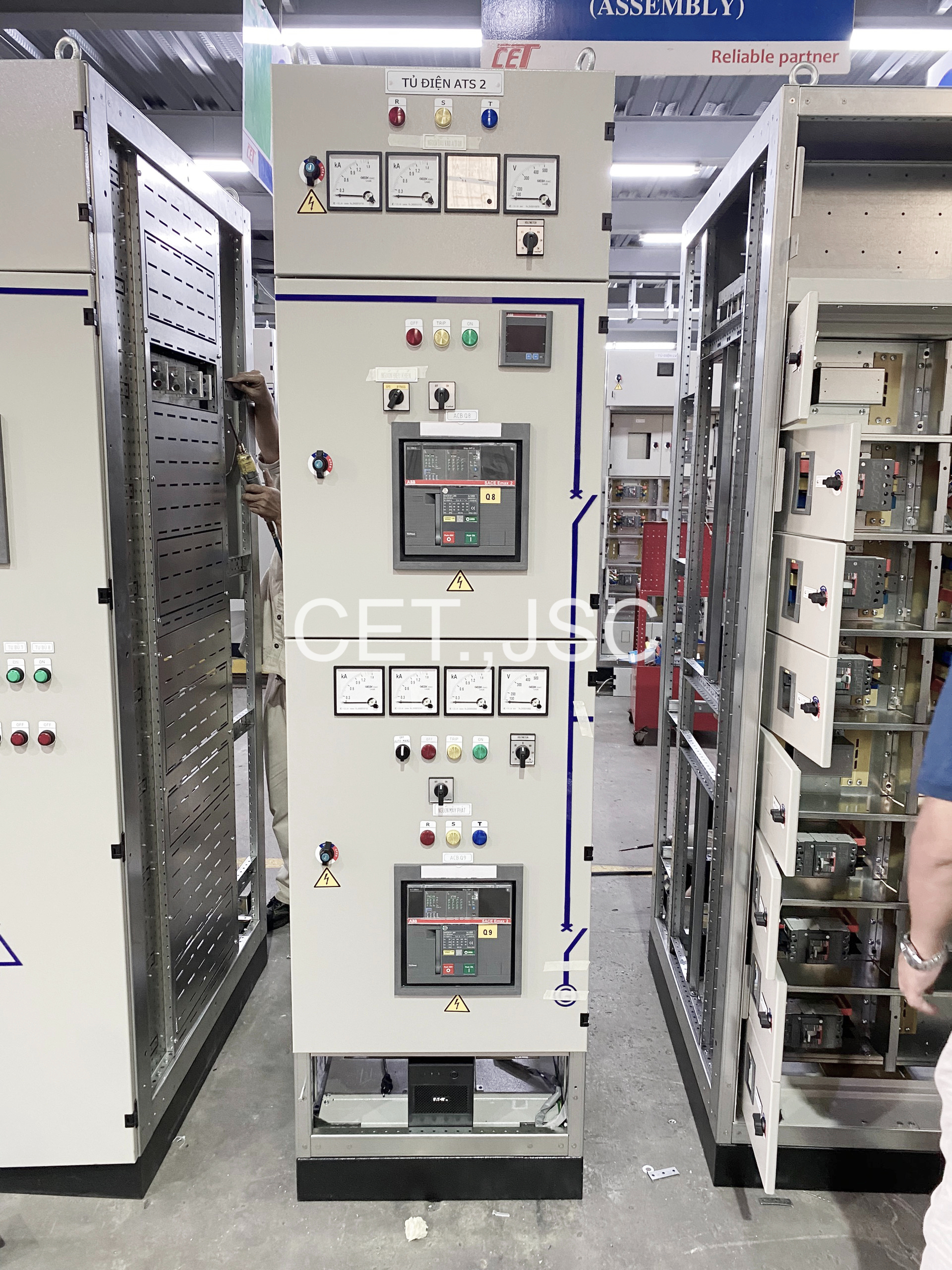

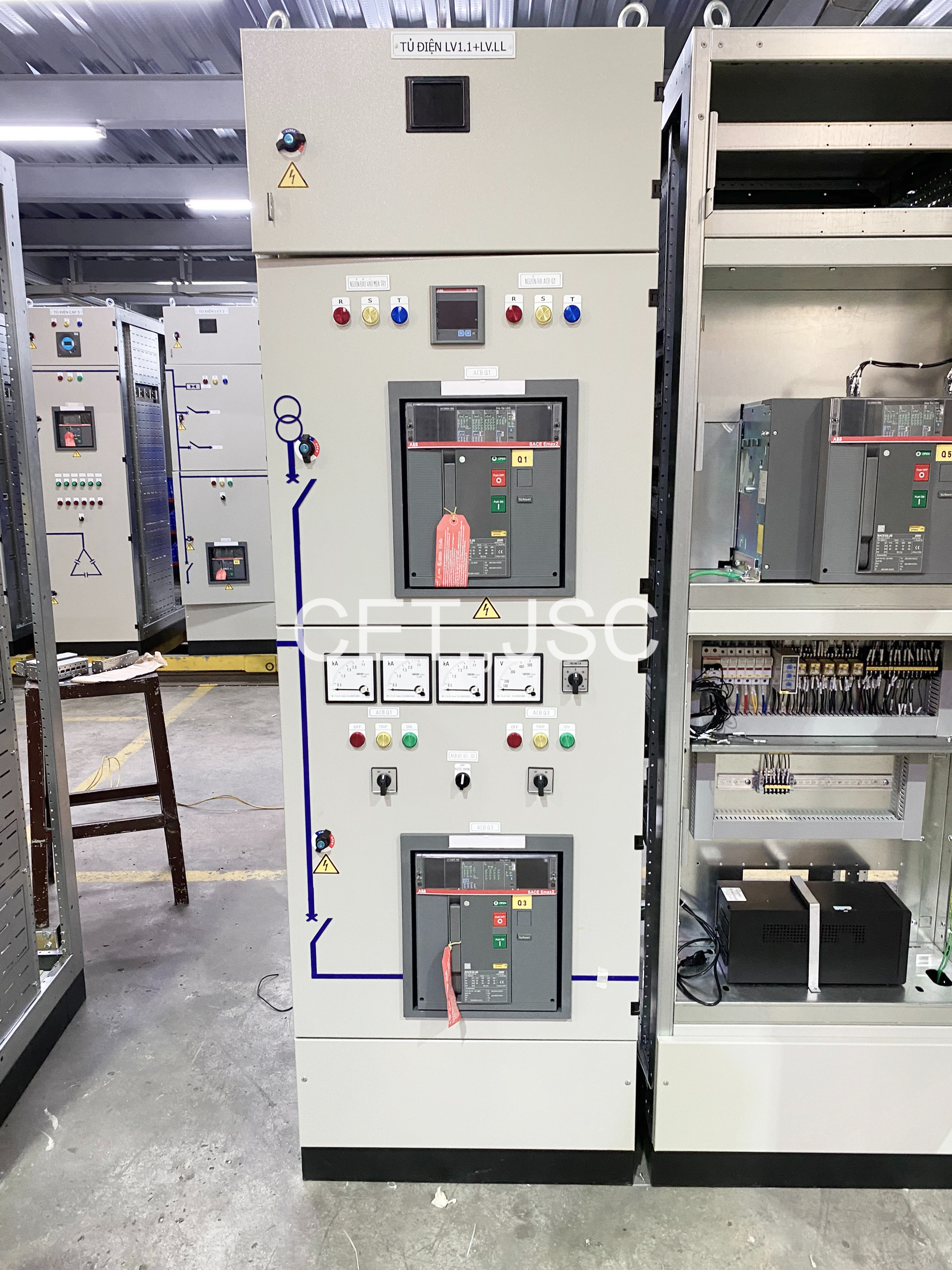

ATS electrical cabinet

ATS electrical cabinet has the function of automatically switching between main power and backup power. The main power is usually the grid power, the backup power is usually a generator or UPS. When the main power is lost or has a problem (phase loss, phase reversal, overvoltage, low voltage...), ATS will automatically signal to call the backup power and will switch to the backup power in about 5-10 seconds. When the main power is restored, ATS will wait from 10-30 seconds to verify that the main power is stable and automatically switch back. The backup power will automatically turn off after running idle for 1-2 minutes.

ATS cabinets are used in commercial centers, office buildings, apartments, hospitals, ports, airports or in industrial zones such as factories, industrial workshops... where there are loads that require continuous power supply, high reliability of power supply. ATS cabinets are also used in civil or industrial areas where there are often sudden power outages.
ATS electrical cabinets manufactured by CET have the ability to operate automatically or manually. Switching time can be flexibly adjusted, have a measuring system and a clear indicator light system. There is an automatic control mode to run periodic maintenance of the no-load generator according to a schedule.
